• acrylic body
• without valve
• metal parts AISI 316

• 0,25-51/min H2O
• 10-280 1n/min air
• connections BSPP 3/8

• 0,5-30 1/min H2O
• 25-1000 1n/min air
• connections BSPP 3/4"

• 7,5-100 1/min air
• 200-2000 1n/min air
• connections BSPP 1"

• acrylic body
• aluminium metal parts
• valve spindle AISI 316

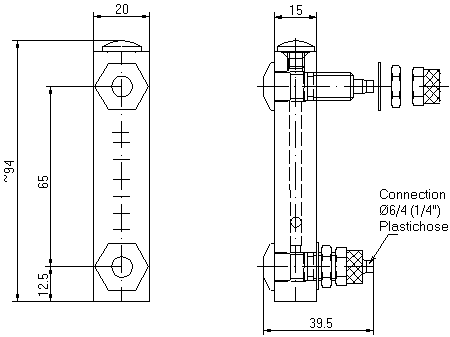

• Compression type connections for 6/4 hose
• available for range 0,2-7 1n/min air

• acrylic body

• plugs and valve housing nylon or AISI 316

• valve spindle AISI 316

• connections BSPP 1/4"
• available for ranges:
  • 0,1-2,5 1/minH2O
  • 2-90 1n/min air

• optional handknob


• MULTI BLOCK AVAILABLE

• aluminium, nylon or AISI 316 construction

• grilamid (or PES) flowtube

• with or without valve

• connections BSPP 1" or NPT 1"

• available for ranges:
  • 7,5-120 1/min H2O
  • 0,2-3m3n/min air

• optional alarm


• MULTI BLOCK AVAILABLE

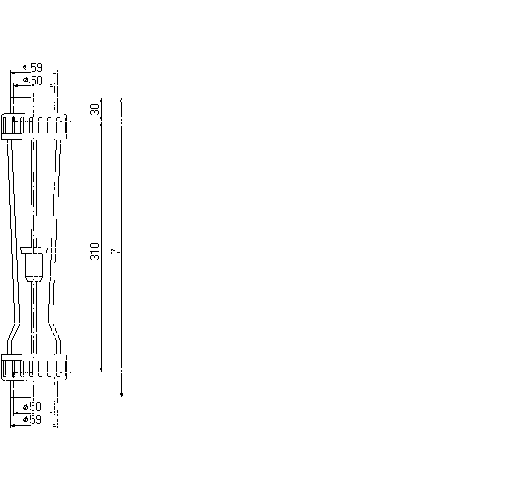

• flowtube grilamid (or PES)

• connections PVC, ABS, PP, PIDF and AISI 316

• float and guide rod AISI 316

• connections Ø 50, Ø 25, Ø 20 or BSP 1 1/2", 3/4", 1/2"

• available for ranges

• 0,5-22 m3/h H2O

• 0,4-14m3n/min air

• 0,3-4,5 m3/h H2O

• 0,15-2 m3n/min. air

• 0,04-1,8 m3/h H2O

• 0,003-0,9 m3n/min air


• optional alarm

• acrylic, grilamid or trogamid body

• plugs and valve AISI 316

• connections NPT 1/4" or BSPT 1/4"

• available for ranges
• 0,001-3 1/minH2O
• 0,05-100 1n/min air

• optional handknob

• AISI 316 or aluminium construction

• without valve

• 7,5-400 1/min H2O

• 0,3-12 m3n/min air

• connections DN 50 flanges to BS4504: PN 16 or 2"AiSi B16.5 or 2"BSPP

• grilamid (or PES) flowtube





• 75-1300 1/min H2O

• connections DN 80 flanges to BS4504: PN 16 or 3"AiSi B16.5 or BSP 4" BSPP

• acrylic flowtube





• aluminium, nylon or AISI 316 construction

• grilamid (or PES) flowtube

• with or without valve
• connections BSPP 1/2" or NPT 1/2"
• available for ranges
  • 0,4-30 1/min H2O
• 15-1000 1n/min air

• optional alarm


• MULTI BLOCK AVAILABLE

FLOW ALARMS

• Most of the variable area flowmeters can be equipped with inductive proximity sensors, either adjustable or non-adjustable, for high or low point flow alarm.
• side mounted adjustable proximity sensor for types V, K and TL models
• Low point non-adjustable sensors for
  VEnA-models

• The amplifier is required for namur sensors. It has a common relay output for all inputs. The max. load 230 VAC, 5A. The supply for unit is 220 VAC.

• Available are units for 2, 6, 12, 24 or 30 sensors.
